SIGNAL

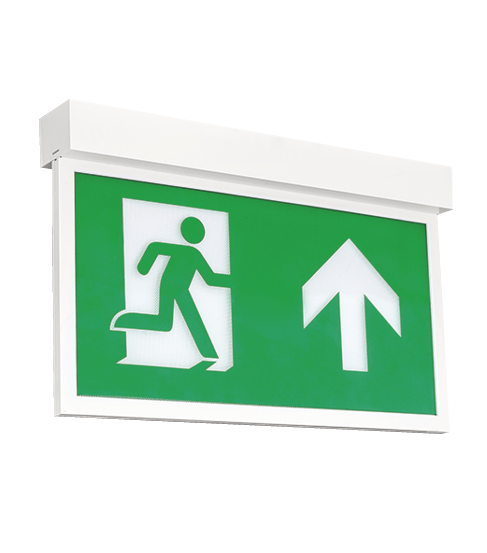

Signal 7 Exit signs have been designed as extremely versatile fittings that can cover any installation need. They consist of a polycarbonate housing and a methacrylate blade diffuser with a 24m. Viewing distance.
Technical characteristics
| Installation | Surface Mounting |
| Color | Aluminium | Anthracite | White | Black |
| Light source | Led |
| Autonomy | 1h | 3h |
| Dali option |
|
| Operating mode | Non Maintained | Maintained |
| Version | Standard | Self-test | DALI | CBS (24V DC) | CBSi (24V CC) | CBS (230V AC) |
| Maximum viewing distance according to EN1838 | 24 |
Downloads
References
Use the filters to see the model reference of this product that best fits your project:
| Reference | Color | Version | Temperature | Battery | Operating mode | Viewing distance | Technical datasheet | LDT Curve | Certificates |
|---|---|---|---|---|---|---|---|---|---|
| SGE-K-1 | Anthracite | Standard | Ni-Cd | Non Maintained | 0 |
|
|
|
|
| SGE-K-2 | Aluminium | Standard | Ni-Cd | Non Maintained | 0 |
|
|
|
|
| SG-K | White | Standard | Ni-Cd | Maintained | 24 |
|
|
|
|
| SG-K-1 | Anthracite | Standard | Ni-Cd | Maintained | 24 |
|
|
|
|
| SG-K-2 | Aluminium | Standard | Ni-Cd | Maintained | 24 |
|
|
|
|
| SG-KD | White | Standard | Ni-Cd | Maintained | 24 |
|
|
|
|
| SG-KD-1 | Anthracite | Standard | Ni-Cd | Maintained | 24 |
|
|
|
|
| SG-KD-2 | Aluminium | Standard | Ni-Cd | Maintained | 24 |
|
|
|
|
| SG3-K | White | Standard | Ni-MH | Maintained | 24 |
|
|
||
| SG3-K-1 | Anthracite | Standard | Ni-MH | Maintained | 24 |
|
|
||
| SG3-K-2 | Aluminium | Standard | Ni-MH | Maintained | 24 |
|
|
||
| SGEA-K | White | Self-test | Ni-Cd | Non Maintained | 24 |
|
|
|
|
| SGEA-K-1 | Anthracite | Self-test | Ni-Cd | Non Maintained | 24 |
|
|
|
|
| SGEA-K-2 | Aluminium | Self-test | Ni-Cd | Non Maintained | 24 |
|
|
|
|
| SGEA3-K | White | Self-test | Ni-MH | Non Maintained | 24 |
|
|
|
|
| SGEA3-K-1 | Anthracite | Self-test | Ni-MH | Non Maintained | 24 |
|
|
|
|
| SGEA3-K-2 | Aluminium | Self-test | Ni-MH | Non Maintained | 24 |
|
|
|
|
| SGA-K | White | Self-test | Ni-Cd | Maintained | 24 |
|
|
|
|
| SGA-K-1 | Anthracite | Self-test | Ni-Cd | Maintained | 24 |
|
|
|
|
| SGA-K-2 | Aluminium | Self-test | Ni-Cd | Maintained | 24 |
|
|
|
|
| SGA-K-4 | Black | Self-test | Ni-Cd | Maintained | 24 |
|
|
|
|
| SGA3-KD | White | Self-test | Ni-MH | Maintained | 24 |
|
|
||
| SGA3-K | White | Self-test | Ni-MH | Maintained | 24 |
|
|
|
|
| SGA3-K-1 | Anthracite | Self-test | Ni-MH | Maintained | 24 |
|
|
|
|
| SGA3-K-2 | Aluminium | Self-test | Ni-MH | Maintained | 24 |
|
|
|
|
| SGEID3-K | White | DALI | Ni-MH | Non Maintained | 24 |
|
|
|
|
| SGEID3-K-1 | Anthracite | DALI | Ni-MH | Non Maintained | 24 |
|
|
|
|
| SGEID3-K-2 | Aluminium | DALI | Ni-MH | Non Maintained | 24 |
|
|
|
|
| SGID-K | White | DALI | Ni-Cd | Maintained | 24 |
|
|
|
|
| SGID-K-1 | Anthracite | DALI | Ni-Cd | Maintained | 24 |
|
|
||
| SGID-K-2 | Aluminium | DALI | Ni-Cd | Maintained | 24 |
|
|
||
| SGID3-K | White | DALI | Ni-MH | Maintained | 24 |
|
|
|
|
| SGID3-K-1 | Anthracite | DALI | Ni-MH | Maintained | 24 |
|
|
|
|
| SGID3-K-2 | Aluminium | DALI | Ni-MH | Maintained | 24 |
|
|
|
|
| SG-S24-K | White | CBS (24V DC) | Maintained | 24 |
|
|
|
||
| SG-S24-K-1 | Anthracite | CBS (24V DC) | Maintained | 24 |
|
|
|
||
| SG-S24-K-2 | Aluminium | CBS (24V DC) | Maintained | 24 |
|
|
|
||
| SGI-S24-K | White | CBSi (24V CC) | Maintained | 24 |
|
|
|
||
| SGI-S24-K-1 | Anthracite | CBSi (24V CC) | Maintained | 24 |
|
|
|
||
| SGI-S24-K-2 | Aluminium | CBSi (24V CC) | Maintained | 24 |
|
|
|
||
| SG-S-K | White | CBS (230V AC) | Maintained | 0 |
|
|
