SMART

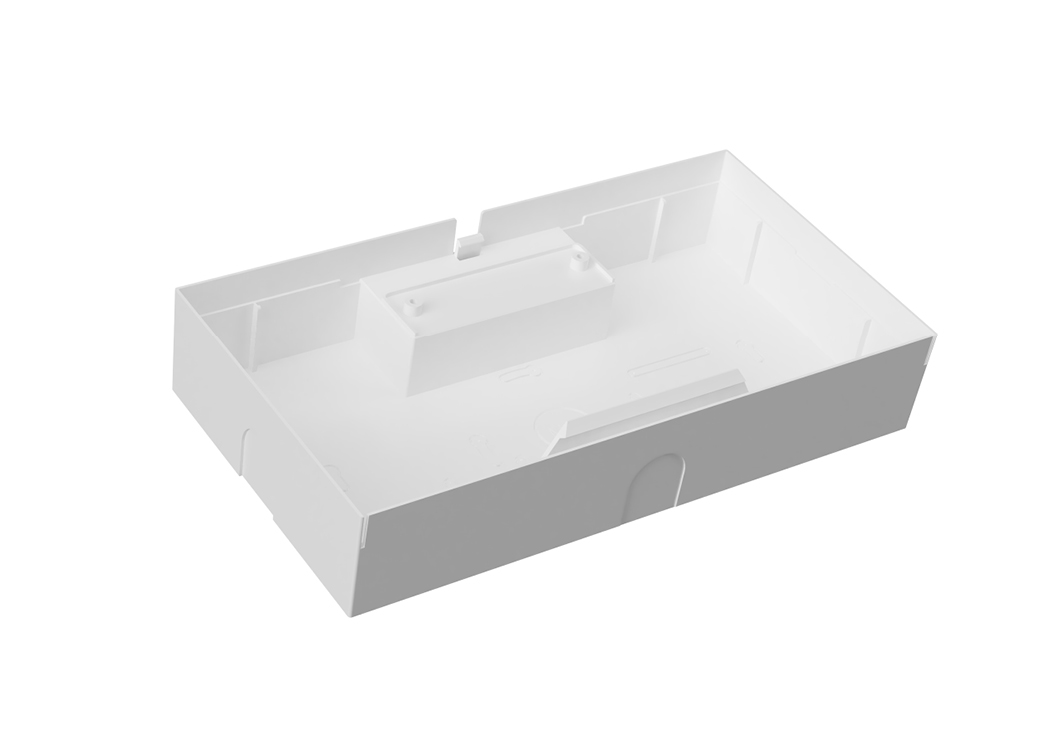

SMART is an emergency lighting product range that has been thought to be used in any kind of site due to its minimalist shape , versatility and user-friendly installation. Can be ceiling and wall surface mounted or recessed with a recession box. It includes a fast connection system that makes it easy to install. Also available as SATI and SATI Addressable with NF Certification (French Norm).
Technical characteristics
| Installation | Surface Mounting |
| Color | White |
| Light source | Led |
| Autonomy | 1h | 2h | 3h | 5h |
| Light range | 13 - 390 |
| Dali option |
|
| Operating mode | Non Maintained | Maintained | Mantained - Non Maintained |
| Version | Sati Adressable | Standard | Self-test | DALI | CBS (24V DC) | CBS (230V AC) | Sati |
Downloads
References
Use the filters to see the model reference of this product that best fits your project:
| Reference | Finish | Version | Lumens | Temperature | Autonomy | Battery | Operating mode | Technical datasheet | LDT Curve | Certificates |
|---|---|---|---|---|---|---|---|---|---|---|
| SSHI-60 | White | Sati Adressable | 60 | 5700 | 1 | Ni-Cd | Non Maintained |
|
|
|
| SSI-60 | White | Sati Adressable | 60 | 5700 | 1 | Ni-Cd | Non Maintained |
|
|
|
| SSI-300 | White | Sati Adressable | 380 | 5700 | 1 | Ni-Cd | Non Maintained |
|
|
|
| SHI-10 | White | Sati Adressable | 13 | 5700 | 5 | Ni-Cd | Non Maintained |
|
|
|
| SS-100L | White | Standard | 70 | 5700 | 1 | Ni-Cd | Non Maintained |
|
|
|
| SS-200L | White | Standard | 190 | 5700 | 1 | Ni-Cd | Non Maintained |
|
|
|
| SS-300L | White | Standard | 330 | 5700 | 1 | Ni-Cd | Non Maintained |
|
|
|
| SS-400L | White | Standard | 390 | 5700 | 1 | Ni-Cd | Non Maintained |
|
|
|
| SS2-300L | White | Standard | 260 | 5700 | 2 | Ni-Cd | Non Maintained |
|
|
|
| SS3-100L | White | Standard | 100 | 5700 | 3 | Ni-Cd | Non Maintained |
|
|
|
| SSL-100 | White | Standard | 130 | 5700 | 1 | Ni-Cd | Maintained |
|
|
|
| SSL-200 | White | Standard | 220 | 5700 | 1 | Ni-Cd | Maintained |
|
|
|
| SSL-300 | White | Standard | 270 | 5700 | 1 | Ni-Cd | Maintained |
|
|
|
| SSL3-100 | White | Standard | 100 | 5700 | 3 | Ni-Cd | Maintained |
|
|
|
| SSA-100L | White | Self-test | 70 | 5700 | 1 | Ni-Cd | Non Maintained |
|
|
|
| SSA-200L | White | Self-test | 190 | 5700 | 1 | Ni-Cd | Non Maintained |
|
|
|
| SSA-300L | White | Self-test | 300 | 5700 | 1 | Ni-Cd | Non Maintained |
|
|
|
| SSA2-300L | White | Self-test | 350 | 5700 | 2 | Ni-Cd | Non Maintained |
|
|
|
| SSA3-100L | White | Self-test | 120 | 5700 | 3 | Ni-Cd | Non Maintained |
|
|
|
| SSAL-100 | White | Self-test | 130 | 5700 | 1 | Ni-Cd | Mantained - Non Maintained |
|
|
|
| SSAL-200 | White | Self-test | 230 | 5700 | 1 | Ni-Cd | Mantained - Non Maintained |
|
|
|
| SSAL-300 | White | Self-test | 320 | 5700 | 1 | Ni-Cd | Mantained - Non Maintained |
|
|
|
| SSAL3-100 | White | Self-test | 115 | 5700 | 3 | Ni-Cd | Mantained - Non Maintained |
|
|
|
| SSID-100L | White | DALI | 150 | 5700 | 1 | 3.6V/ 600MAH | Non Maintained |
|
|
|
| SSID-200L | White | DALI | 190 | 5700 | 1 | Ni-Cd | Non Maintained |
|
|
|
| SSID-300L | White | DALI | 330 | 5700 | 1 | Ni-Cd | Non Maintained |
|
|
|
| SSID2-200L | White | DALI | 195 | 5700 | 2 | Ni-Cd | Non Maintained |
|
|
|
| SS-S24L24-F | White | CBS (24V DC) | 310 | 5700 | CBS | Maintained |
|
|
|
|
| SS-S25L | White | CBS (230V AC) | 300 | 5700 | CBS | Maintained |
|
|
|
|
| SS-60 | White | Sati | 60 | 5700 | 1 | Ni-Cd | Non Maintained |
|
|
|
| SS-60DBR | White | Sati | 60 | 5700 | 1 | Ni-Cd | Non Maintained |
|
|
|
| SSH-60 | White | Sati | 60 | 5700 | 1 | Ni-Cd | Non Maintained |
|
|
|
| SS-300 | White | Sati | 380 | 5700 | 1 | Ni-Cd | Non Maintained |
|
|
|
| SH-10 | White | Sati | 13 | 5700 | 5 | Ni-Cd | Non Maintained |
|
|
|
