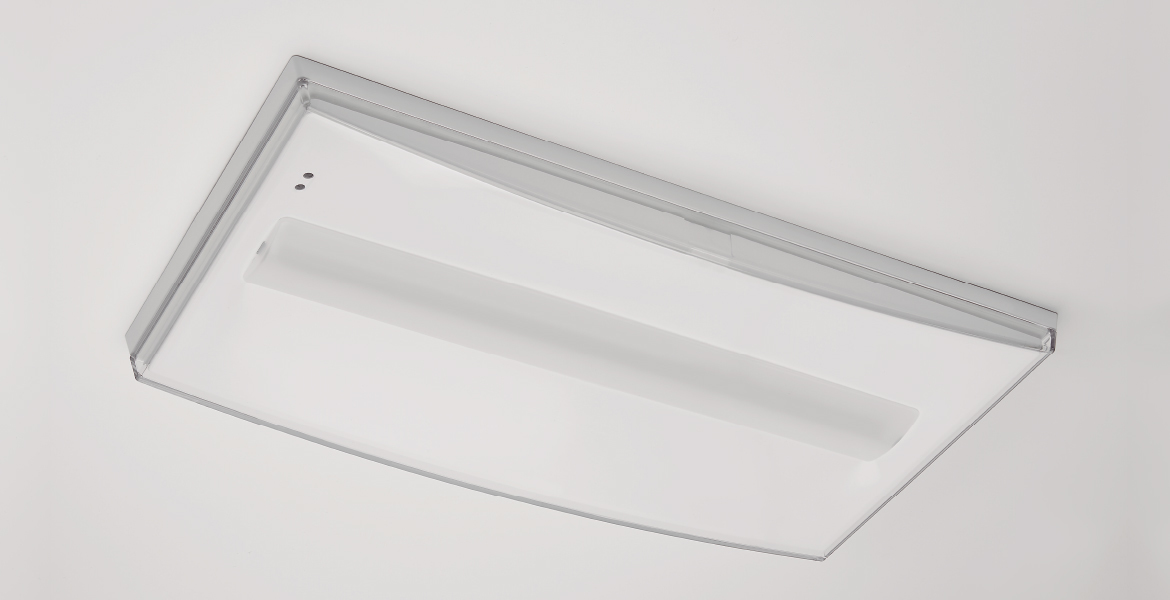

GENNIUS
GENNIUS emergency lighting range stands out due to the perfect combination of design and functionality. Its elegant form hides up to 4 M20 entries (two of them with pre-cut for an easy installation) that are hidden when it is installed semi recessed. But where GENNIUS really makes a difference is on the unseen details: IP68 with the rubber accessory, IK10 for a robust and resistant fitting for any situation. Our R&D team has made an effort to simplify to the maximum the installation of this range, by using quick connection terminal blocks and giving lots of space to maneuver the wires withing the fitting. The ranges is completed with multiple accessories, making GENNIUS one of the more versatile ranges for the most demanding istallations.
Technical characteristics
| Installation | Surface Mounting |
| Color | White |
| Light source | Led |
| Autonomy | 1h | 2h | 3h |
| Light range | 90 - 550 |
| Dali option |
|
| Waterproof |
|
| Operating mode | Non Maintained | Mantained - Non Maintained | Maintained |
| Version | DALI | Intelligent Wireless | Standard | Self-test | CBS (24V DC) | CBSi (24V CC) |
Downloads
References
Use the filters to see the model reference of this product that best fits your project:
| Reference | NG Calc | Version | Lumens | Temperature | Autonomy | Battery | Operating mode | Downloads |
|---|---|---|---|---|---|---|---|---|
| GEID-100L |
|
DALI | 100 | 5700 | 1 | Ni-Cd | Non Maintained |
|
| GEID-200L |
|
DALI | 220 | 5700 | 1 | Ni-Cd | Non Maintained |
|
| GEID-300L | 300 | 5700 | 1 | Ni-Cd | Non Maintained |
|
||
| GEID2-300L | 300 | 5700 | 2 | Ni-Cd | Non Maintained |
|
||
| GEID3-100L |
|
DALI | 100 | 5700 | 3 | Ni-Cd | Non Maintained |
|
| GEIDL-100 |
|
DALI | 140 | 5700 | 1 | Ni-Cd | Mantained - Non Maintained |
|
| GEIDL-200 |
|
DALI | 230 | 5700 | 1 | Ni-Cd | Mantained - Non Maintained |
|
| GEIDL-250Li |
|
DALI | 240 | 5700 | 1 | LiFePO4 | Mantained - Non Maintained |
|
| GEIDL-300 |
|
DALI | 300 | 5700 | 1 | Ni-Cd | Mantained - Non Maintained |
|
| GEIDL-400 |
|
DALI | 400 | 5700 | 1 | Ni-Cd | Mantained - Non Maintained |
|
| GEIDL3-100 |
|
DALI | 100 | 5700 | 3 | Ni-Cd | Mantained - Non Maintained |
|
| GEIDL3-100-R |
|
Intelligent Wireless | 100 | 5700 | 3 | Ni-Cd | Mantained - Non Maintained |
|
| GE-100L |
|
Standard | 95 | 5700 | 1 | Ni-Cd | Non Maintained |
|
| GE-200L |
|
Standard | 200 | 5700 | 1 | Ni-Cd | Non Maintained |
|
| GE-300L |
|
Standard | 300 | 5700 | 1 | Ni-Cd | Non Maintained |
|
| GE3-100L |
|
Standard | 100 | 5700 | 3 | Ni-Cd | Non Maintained |
|
| GEL-100 |
|
Standard | 95 | 5700 | 1 | Ni-Cd | Mantained - Non Maintained |
|
| GEL-150 | Standard | 170 | 5700 | 1 | Ni-Cd | Mantained - Non Maintained |
|
|
| GEL-200 |
|
Standard | 195 | 5700 | 1 | Ni-Cd | Mantained - Non Maintained |
|
| GEL-300 |
|
Standard | 300 | 5700 | 1 | Ni-Cd | Mantained - Non Maintained |
|
| GEL-400 |
|
Standard | 420 | 5700 | 1 | Ni-Cd | Mantained - Non Maintained |
|
| GEL3-100 |
|
Standard | 90 | 5700 | 3 | Ni-Cd | Mantained - Non Maintained |
|
| GEL3-150 | Standard | 150 | 5700 | 3 | Ni-Cd | Mantained - Non Maintained |
|
|
| GEA-100L |
|
Self-test | 100 | 5700 | 1 | Ni-Cd | Non Maintained |
|
| GEA-200L |
|
Self-test | 200 | 5700 | 1 | Ni-Cd | Non Maintained |
|
| GEA-300L |
|
Self-test | 300 | 5700 | 1 | Ni-Cd | Non Maintained |
|
| GEA3-100L |
|
Self-test | 95 | 5700 | 3 | Ni-Cd | Non Maintained |
|
| GEAL-100 |
|
Self-test | 120 | 5700 | 1 | Ni-Cd | Mantained - Non Maintained |
|
| GEAL-200 |
|
Self-test | 200 | 5700 | 1 | Ni-Cd | Mantained - Non Maintained |
|
| GEAL-250Li |
|
Self-test | 260 | 5700 | 1 | LiFePO4 | Mantained - Non Maintained |
|
| GEAL-300 |
|
Self-test | 300 | 5700 | 1 | Ni-Cd | Mantained - Non Maintained |
|
| GEAL-400 |
|
Self-test | 400 | 5700 | 1 | Ni-Cd | Mantained - Non Maintained |
|
| GEIDL-500Li |
|
Self-test | 500 | 5700 | 1 | LiFePO4 | Mantained - Non Maintained |
|
| GEAL-500Li |
|
Self-test | 550 | 5700 | 1 | LiFePO4 | Mantained - Non Maintained |
|
| GEAL3-100 |
|
Self-test | 100 | 5700 | 3 | Ni-Cd | Mantained - Non Maintained |
|
| GE-S24L24 |
|
CBS (24V DC) | 300 | 5700 | CBS | Maintained |
|
|
| GEI-S25L24 |
|
CBSi (24V CC) | 300 | 5700 | CBSI | Maintained |
|
