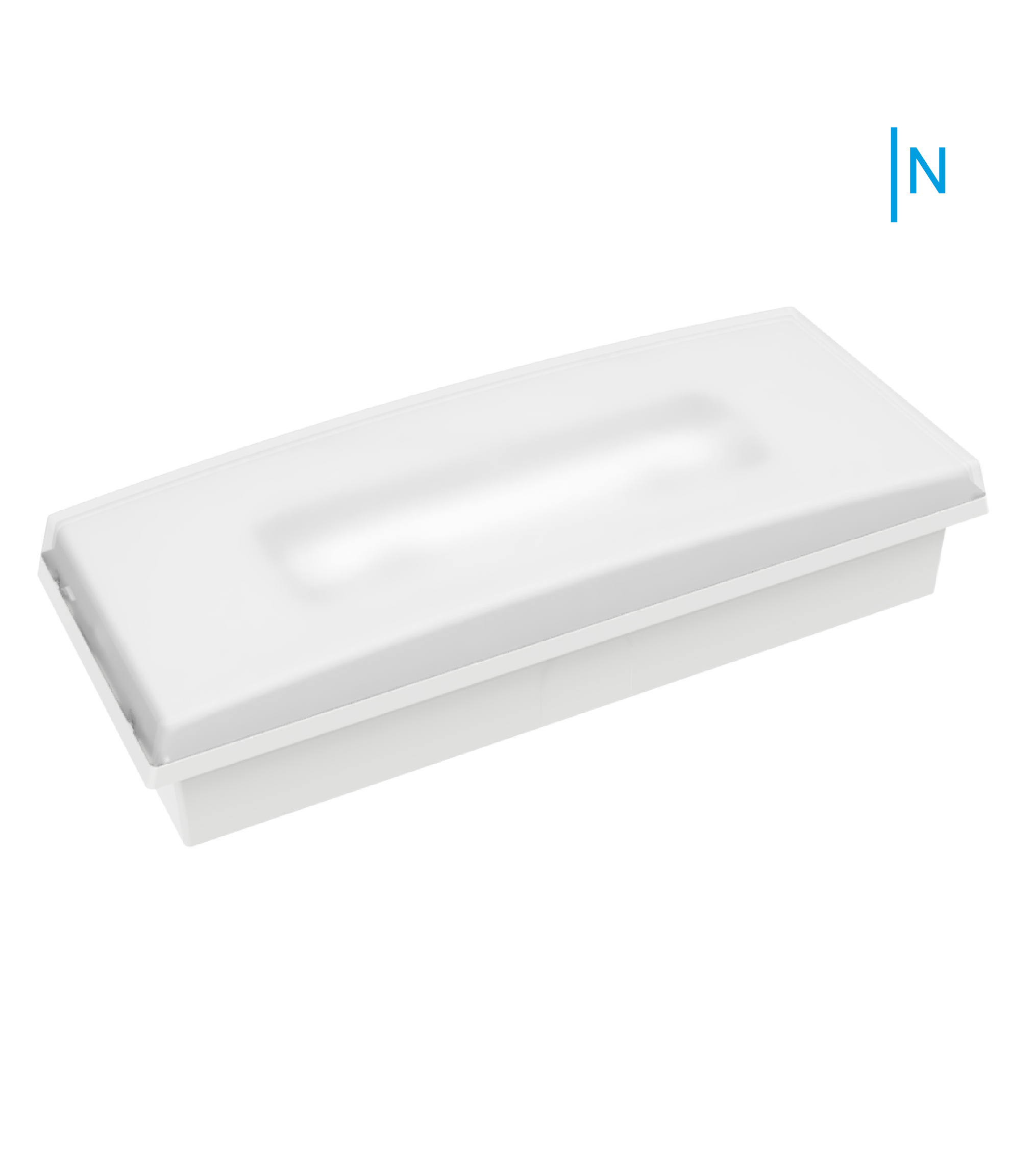

GSE
GSE is a luminaire that embodies the core values of Normalux in a compact, robust and versatile design.Engineered with an IP65 protection rating, it includes four lateral M20 conduit entries and one rear M16 entry, allowing for quick, flexible installation across a wide range of configurations. Thanks to its recessed mounting option for both wall and ceiling installations.
This luminaire range has a verified Environmental Product Declaration (EPD) in accordance with EN ISO 14025, EN ISO 14040 and EN 15804 standards.
This certification provides objective data on its environmental impact throughout the entire life cycle.
Technical characteristics
| Installation | Surface Mounting |
| Color | White |
| Light source | Led |
| Autonomy | 1h | 2h | 3h |
| Light range | 70 - 525 |
| Autonomy | 1h | 2h | 3h |
| Waterproof |
|
| Operating mode | Non Maintained | Maintained |
| Version | Standard | Self-test |
| Charging | max. 24/12 h |
Downloads
References
Use the filters to see the model reference of this product that best fits your project:
| Reference | NG Calc | Version | Lumens | Temperature | Autonomy (h) | Battery | Operating mode | Downloads |
|---|---|---|---|---|---|---|---|---|
| GSE-60L |
|
Standard | 70 | 5700 | 1 | Ni-Cd | Non Maintained |
|
| GSE-100L |
|
Standard | 110 | 5700 | 1 | Ni-Cd | Non Maintained |
|
| GSE-150L |
|
Standard | 165 | 5700 | 1 | Ni-Cd | Non Maintained |
|
| GSE-200L |
|
Standard | 210 | 5700 | 1 | Ni-Cd | Non Maintained |
|
| GSE-300L |
|
Standard | 325 | 5700 | 1 | Ni-Cd | Non Maintained |
|
| GSE-400L |
|
Standard | 400 | 5700 | 1 | Ni-Cd | Non Maintained |
|
| GSE-500L |
|
Standard | 500 | 5700 | 1 | Ni-MH | Non Maintained |
|
| GSE2-100L |
|
Standard | 126 | 5700 | 2 | Ni-Cd | Non Maintained |
|
| GSE2-300L |
|
Standard | 305 | 5700 | 2 | Ni-Cd | Non Maintained |
|
| GSE3-100L | Standard | 130 | 5700 | 3 | Ni-Cd | Non Maintained |
|
|
| GSE3-200L |
|
Standard | 200 | 5700 | 3 | Ni-Cd | Non Maintained |
|
| GSEL-60 |
|
Standard | 80 | 5700 | 1 | Ni-Cd | Maintained |
|
| GSEL-100 |
|
Standard | 100 | 5700 | 1 | Ni-Cd | Maintained |
|
| GSEL-150 |
|
Standard | 170 | 5700 | 1 | Ni-Cd | Maintained |
|
| GSEL-200 |
|
Standard | 200 | 5700 | 1 | Ni-Cd | Maintained |
|
| GSEL-300 |
|
Standard | 300 | 5700 | 1 | Ni-Cd | Maintained |
|
| GSEL-400 |
|
Standard | 400 | 5700 | 1 | Ni-Cd | Maintained |
|
| GSEL3-100 |
|
Standard | 110 | 5700 | 3 | Ni-Cd | Maintained |
|
| GSEA-60L |
|
Self-test | 70 | 5700 | 1 | Ni-Cd | Non Maintained |
|
| GSEA-100L |
|
Self-test | 130 | 5700 | 1 | Ni-Cd | Non Maintained |
|
| GSEA-150L |
|
Self-test | 170 | 5700 | 1 | Ni-Cd | Non Maintained |
|
| GSEA-200L |
|
Self-test | 200 | 5700 | 1 | Ni-Cd | Non Maintained |
|
| GSEA-300L |
|
Self-test | 310 | 5700 | 1 | Ni-Cd | Non Maintained |
|
| GSEA-300L-MH |
|
Self-test | 310 | 5700 | 1 | Ni-MH | Non Maintained |
|
| GSEA-400L |
|
Self-test | 465 | 5700 | 1 | Ni-Cd | Non Maintained |
|
| GSEA-500L |
|
Self-test | 525 | 5700 | 1 | Ni-MH | Non Maintained |
|
| GSEA2-150L |
|
Self-test | 170 | 5700 | 2 | Ni-Cd | Non Maintained |
|
| GSEA2-300L |
|
Self-test | 310 | 5700 | 2 | Ni-Cd | Non Maintained |
|
| GSEA3-200L |
|
Self-test | 195 | 5700 | 3 | Ni-Cd | Non Maintained |
|
| GSEAL-60 |
|
Self-test | 75 | 5700 | 1 | Ni-Cd | Maintained |
|
| GSEAL-150 |
|
Self-test | 155 | 5700 | 1 | Ni-Cd | Maintained |
|
| GSEAL-200 |
|
Self-test | 190 | 5700 | 1 | Ni-Cd | Maintained |
|
| GSEAL-300 |
|
Self-test | 310 | 5700 | 1 | Ni-Cd | Maintained |
|
